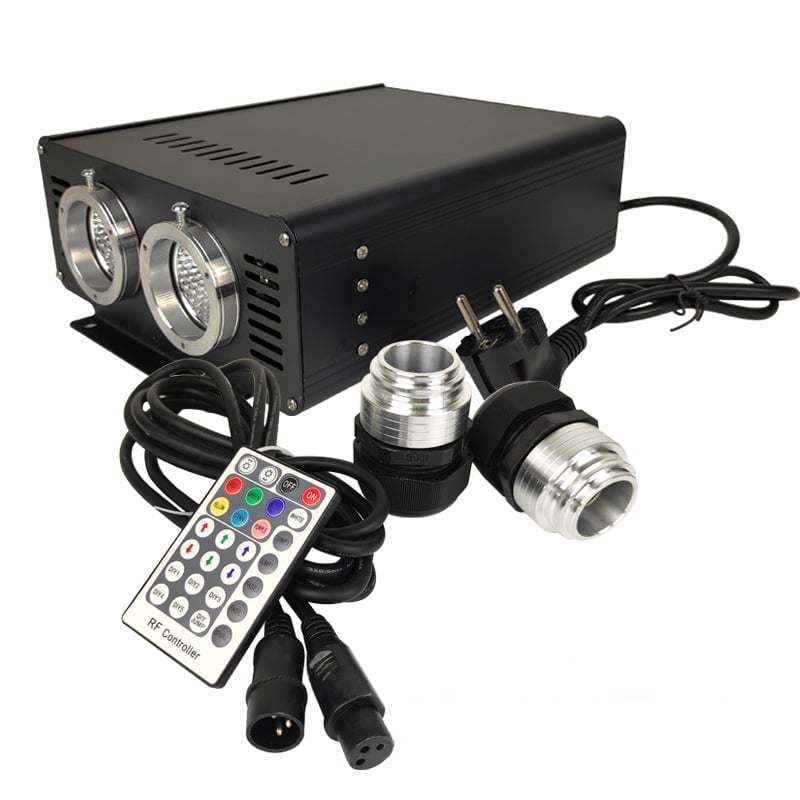

Nexfro 32W Double Head DMX RGBW Star Ceiling Light Engine
The Nexfro DMX512 Series Fiber Optic Light Engine is an advanced, high-power illuminator designed for professional star ceiling and complex fiber optic lighting installations. It features two 16W light heads for a total of 32W of power.
This engine converts the DMX512 standard digital signal into an analog signal, allowing seamless control via a DMX console.
Key Features and Control
- DMX Protocol: Uses the international standard DMX512 input protocol. Each machine occupies 7 DMX channels for precise control.
- High-Resolution Dimming: Each channel achieves 256 control levels (0-100% dimming output).
- Dual Head Power: Features two light output heads for maximum coverage and brightness, totaling 32W.
- Built-in Modes: Includes static single colors (Red, Green, Blue, White, Pink, etc.) and RGBW light changing (flash, fade, jump). Brightness is fully adjustable.
- Superior Durability: The shell is made of aluminum alloy for excellent heat dissipation, ensuring a longer LED life (over 50,000 hours).
- Note: The color output is RGBW, which provides purer white light than standard RGB systems.
Specifications
| Specification | Value |
| Input Voltage | AC110V/220V |
| Rated Voltage | DC12V |
| Power | 32W (2 times 16W) |
| LED Chip | RGBW LED |
| Output Grayscale | 256 |
| Input Signal | DMX512/1990 |
| Output DMX | 7 channels |
| DMX Socket | Standard XLR |
| Fiber Head Diameter | 20 mm |
| Light Source Size | 135 by 95 by 55 mm |
| Lifetime | Over 50,000 hours |
Note: This lighting engine does not contain any fiber optic cables. Fiber optic cables must be purchased separately.
